R78減速機詳細信息
R78減速機
訂購熱線：13360667204
R78減速機傳動比計算：齒輪減速馬達
輸送帶參數：輪子直徑160，負載3.5噸，一分鐘走20米
20米÷（0.16輪子直徑×3.14）=39.8轉每分鐘
3.5噸換算成N=35000N
35000×0.08輪子半徑×0.06摩擦系數=168N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍168×2=336N.m
電機轉數1400÷輸出轉數39.8=35.17比
336N.m輸出扭矩÷35.17比=9.55N.m電機扭矩
9.55N.m電機扭矩換算成功率1.51KW以上
對應的R78減速機選型參數：
型號：R78-B1.5KW
減速比：36.83
輸出轉數：39轉每分鐘
輸出扭矩：365N.m
安全系數：2.20

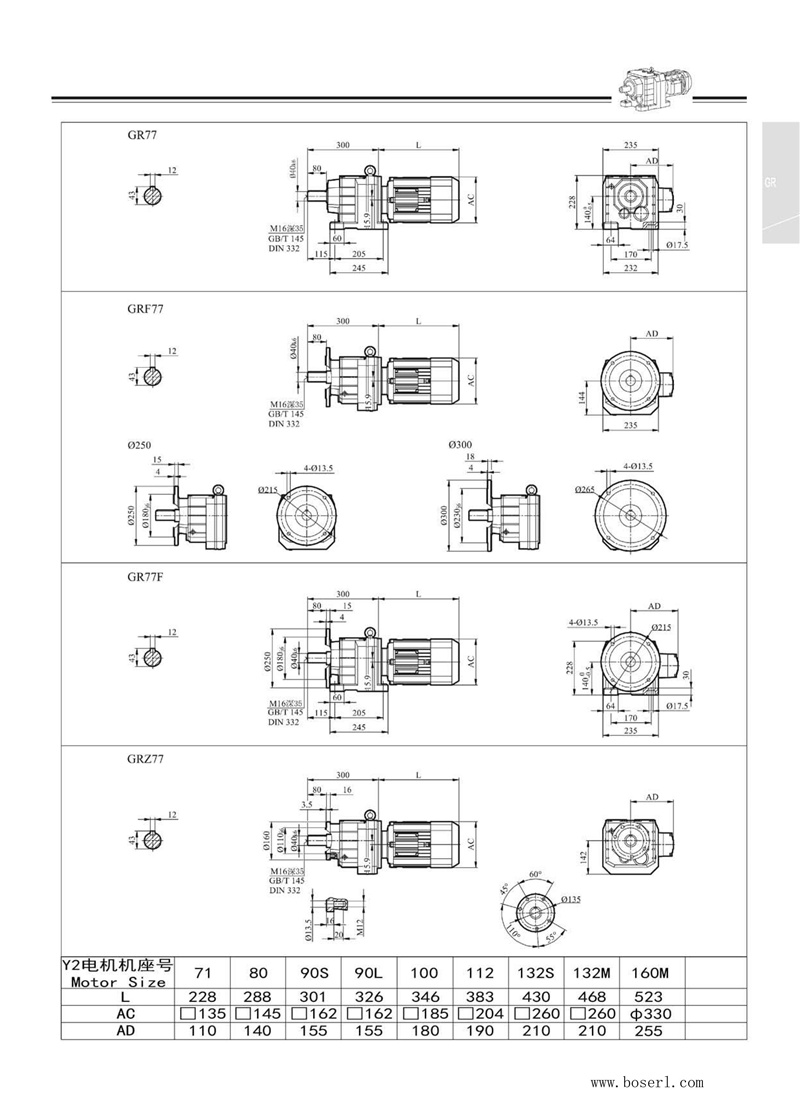

R78減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）R系列減速機
R78臥式硬齒面斜齒輪減速機型號：
R77FDM100L4,R77FDM100LC4,R77FDM100LS4,R77FDM100M4,R77FDM112M4,R77FDM132L4,R77FDM132M4,R77FDM132MC4,R77FDM132ML4,R77FDM132S4,R77FDM160L4,R77FDM160M4,R77FDM160MC4,R77FDM160S4,R77FDM71D4,R77FDM71M4,R77FDM71MS4,R77FDM71S4,R77FDM80K4,R77FDM80M4,R77FDM80MK4,R77FDM80N4,R77FDM80S4,R77FDM90L4,R77FDM90M4,R77FDM90S4,R77FDR100L4,R77FDR100LC4,R77FDR100LS4,R77FDR100M4,R77FDR112M4,R77FDR132L4,R77FDR132M4,R77FDR132MC4,R77FDR132ML4,R77FDR132S4,R77FDR160L4,R77FDR160M4,R77FDR160MC4,R77FDR160S4,R77FDR71D4,R77FDR71M4,R77FDR71MS4,R77FDR71S4,R77FDR80K4,R77FDR80M4,R77FDR80MK4,R77FDR80N4,R77FDR80S4,R77FDR90L4,R77FDR90M4,R77FDR90S4,R77FDRE100L4,R77FDRE100LC4,R77FDRE100LS4,R77FDRE100M4,R77FDRE112M4,R77FDRE132L4,R77FDRE132M4,R77FDRE132MC4,R77FDRE132ML4,R77FDRE132S4,R77FDRE160L4,R77FDRE160M4,R77FDRE160MC4,R77FDRE160S4,R77FDRE71D4,R77FDRE71M4,R77FDRE71MS4,R77FDRE71S4,R77FDRE80K4,R77FDRE80M4,R77FDRE80MK4,R77FDRE80N4,R77FDRE80S4,R77FDRE90L4,R77FDRE90M4,R77FDRE90S4,R77FDRN100L4,R77FDRN100LC4,R77FDRN100LS4,R77FDRN100M4,R77FDRN112M4,R77FDRN132L4,R77FDRN132M4,R77FDRN132MC4,R77FDRN132ML4,R77FDRN132S4,R77FDRN160L4,R77FDRN160M4,R77FDRN160MC4,R77FDRN160S4,R77FDRN71D4,R77FDRN71M4,R77FDRN71MS4,R77FDRN71S4,R77FDRN80K4,R77FDRN80M4,R77FDRN80MK4,R77FDRN80N4,R77FDRN80S4,R77FDRN90L4,R77FDRN90M4,R77FDRN90S4,R77FDRS100L4,R77FDRS100LC4,R77FDRS100LS4,R77FDRS100M4,R77FDRS112M4,R77FDRS132L4,R77FDRS132M4,R77FDRS132MC4,R77FDRS132ML4,R77FDRS132S4,R77FDRS160L4,R77FDRS160M4,R77FDRS160MC4,R77FDRS160S4,R77FDRS71D4,R77FDRS71M4,R77FDRS71MS4,R77FDRS71S4,R77FDRS80K4,R77FDRS80M4,R77FDRS80MK4,R77FDRS80N4,R77FDRS80S4,R77FDRS90L4,R77FDRS90M4,R77FDRS90S4,R77FDT100L4,R77FDT100LC4,R77FDT100LS4,R77FDT100M4,R77FDT112M4,R77FDT132L4,R77FDT132M4,R77FDT132MC4,R77FDT132ML4,R77FDT132S4,R77FDT160L4,R77FDT160M4,R77FDT160MC4,R77FDT160S4,R77FDT71D4,R77FDT71M4,R77FDT71MS4,R77FDT71S4,R77FDT80K4,R77FDT80M4,R77FDT80MK4,R77FDT80N4,R77FDT80S4,R77FDT90L4,R77FDT90M4,R77FDT90S4,R77FDV100L4,R77FDV100LC4,R77FDV100LS4,R77FDV100M4,R77FDV112M4,R77FDV132L4,R77FDV132M4,R77FDV132MC4,R77FDV132ML4,R77FDV132S4,R77FDV160L4,R77FDV160M4,R77FDV160MC4,R77FDV160S4,R77FDV71D4,R77FDV71M4,R77FDV71MS4,R77FDV71S4,R77FDV80K4,R77FDV80M4,R77FDV80MK4,R77FDV80N4,R77FDV80S4,R77FDV90L4,R77FDV90M4,R77FDV90S4,R77FDVE100L4,R77FDVE100LC4,R77FDVE100LS4,R77FDVE100M4,R77FDVE112M4,R77FDVE132L4,R77FDVE132M4,R77FDVE132MC4,R77FDVE132ML4,R77FDVE132S4,R77FDVE160L4,R77FDVE160M4,R77FDVE160MC4,R77FDVE160S4,R77FDVE71D4,R77FDVE71M4,R77FDVE71MS4,R77FDVE71S4,R77FDVE80K4,R77FDVE80M4,R77FDVE80MK4,R77FDVE80N4,R77FDVE80S4,R77FDVE90L4,R77FDVE90M4,R77FDVE90S4,R77F-Y0.18KW,R77F-Y0.25KW,R77F-Y0.37KW,R77F-Y0.55KW,R77F-Y0.75KW,R77F-Y1.1KW,R77F-Y1.5KW,R77F-Y100M4,R77F-Y112M4,R77F-Y11KW,R77F-Y132M4,R77F-Y15KW,R77F-Y160M4,R77F-Y2.2KW,R77F-Y3KW,R77F-Y4KW,R77F-Y5.5KW,R77F-Y7.5KW,R77F-Y71M4,R77F-Y80M4,R77F-Y90M4,R77F-YEJ0.18KW,R77F-YEJ0.25KW,R77F-YEJ0.37KW,R77F-YEJ0.55KW,R77F-YEJ0.75KW,R77F-YEJ1.1KW,R77F-YEJ1.5KW,R77F-YEJ100M4,R77F-YEJ112M4,R77F-YEJ11KW,R77F-YEJ132M4,R77F-YEJ15KW,R77F-YEJ160M4,R77F-YEJ2.2KW,R77F-YEJ3KW,R77F-YEJ4KW,R77F-YEJ5.5KW,R77F-YEJ7.5KW,R77F-YEJ71M4,R77F-YEJ80M4,R77F-YEJ90M4,R77F-YVP0.18KW,R77F-YVP0.25KW,R77F-YVP0.37KW,R77F-YVP0.55KW,R77F-YVP0.75KW,R77F-YVP1.1KW,R77F-YVP1.5KW,R77F-YVP100M4,R77F-YVP112M4,R77F-YVP11KW,R77F-YVP132M4,R77F-YVP15KW,R77F-YVP160M4,R77F-YVP2.2KW,R77F-YVP3KW,R77F-YVP4KW,R77F-YVP5.5KW,R77F-YVP7.5KW,R77F-YVP71M4,R77F-YVP80M4,R77F-YVP90M4,R77F-YVPEJ0.18KW,R77F-YVPEJ0.25KW,R77F-YVPEJ0.37KW,R77F-YVPEJ0.55KW,R77F-YVPEJ0.75KW,R77F-YVPEJ1.1KW,R77F-YVPEJ1.5KW,R77F-YVPEJ100M4,R77F-YVPEJ112M4,R77F-YVPEJ11KW,R77F-YVPEJ132M4,R77F-YVPEJ15KW,R77F-YVPEJ160M4,R77F-YVPEJ2.2KW,R77F-YVPEJ3KW,R77F-YVPEJ4KW,R77F-YVPEJ5.5KW,R77F-YVPEJ7.5KW,R77F-YVPEJ71M4,R77F-YVPEJ80M4,R77F-YVPEJ90M4。
R77系列減速機參數大全：同軸斜齒輪減速電機
R77F減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R77F-Y0.18KW | 195.24 | 0.18KW | 42kg | 12900N |
| R77F-Y0.18KW | 166.59 | 0.18KW | 42kg | 13000N |
| R77F-Y0.18KW | 145.67 | 0.18KW | 42kg | 13000N |
| R77F-Y0.18KW | 138.39 | 0.18KW | 42kg | 13000N |
R77F減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R77F-Y0.25KW | 195.24 | 0.25KW | 46kg | 12600N |
| R77F-Y0.25KW | 166.59 | 0.25KW | 46kg | 12800N |
| R77F-Y0.25KW | 145.67 | 0.25KW | 46kg | 12900N |
| R77F-Y0.25KW | 138.39 | 0.25KW | 46kg | 12900N |
| R77F-Y0.25KW | 121.42 | 0.25KW | 46kg | 13000N |
R77F減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R77F-Y0.37KW | 195.24 | 0.37KW | 46.5kg | 12100N |
| R77F-Y0.37KW | 166.59 | 0.37KW | 46.5kg | 12400N |
| R77F-Y0.37KW | 145.67 | 0.37KW | 46.5kg | 12600N |
| R77F-Y0.37KW | 138.39 | 0.37KW | 46.5kg | 12600N |
| R77F-Y0.37KW | 121.42 | 0.37KW | 46.5kg | 12800N |
| R77F-Y0.37KW | 102.99 | 0.37KW | 46.5kg | 12900N |
| R77F-Y0.37KW | 92.97 | 0.37KW | 46.5kg | 12900N |
R77F減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R77F-Y0.55KW | 166.59 | 0.55KW | 51kg | 11400N |
| R77F-Y0.55KW | 145.67 | 0.55KW | 51kg | 11800N |
| R77F-Y0.55KW | 138.39 | 0.55KW | 51kg | 12000N |
| R77F-Y0.55KW | 121.42 | 0.55KW | 51kg | 12200N |
| R77F-Y0.55KW | 102.99 | 0.55KW | 51kg | 12500N |
| R77F-Y0.55KW | 92.97 | 0.55KW | 51kg | 12600N |
| R77F-Y0.55KW | 81.8 | 0.55KW | 51kg | 12800N |
| R77F-Y0.55KW | 77.24 | 0.55KW | 51kg | 12800N |
| R77F-Y0.55KW | 65.77 | 0.55KW | 51kg | 12900N |
R77F減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R77F-Y0.75KW | 166.59 | 0.75KW | 52kg | 9810N |
| R77F-Y0.75KW | 145.67 | 0.75KW | 52kg | 10700N |
| R77F-Y0.75KW | 138.39 | 0.75KW | 52kg | 11000N |
| R77F-Y0.75KW | 121.42 | 0.75KW | 52kg | 11500N |
| R77F-Y0.75KW | 102.99 | 0.75KW | 52kg | 12000N |
| R77F-Y0.75KW | 92.97 | 0.75KW | 52kg | 12200N |
| R77F-Y0.75KW | 81.8 | 0.75KW | 52kg | 12500N |
| R77F-Y0.75KW | 77.24 | 0.75KW | 52kg | 12500N |
| R77F-Y0.75KW | 65.77 | 0.75KW | 52kg | 12700N |
| R77F-Y0.75KW | 57.68 | 0.75KW | 52kg | 12800N |
| R77F-Y0.75KW | 52.07 | 0.75KW | 52kg | 12900N |
| R77F-Y0.75KW | 45.81 | 0.75KW | 52kg | 13000N |
| R77F-Y0.75KW | 43.26 | 0.75KW | 52kg | 13000N |
R77F減速機配1.1KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R77F-Y1.1KW | 121.42 | 1.1KW | 56kg | 9130N |
| R77F-Y1.1KW | 102.99 | 1.1KW | 56kg | 10400N |
| R77F-Y1.1KW | 92.97 | 1.1KW | 56kg | 11000N |
| R77F-Y1.1KW | 81.8 | 1.1KW | 56kg | 11500N |
| R77F-Y1.1KW | 77.24 | 1.1KW | 56kg | 11700N |
| R77F-Y1.1KW | 65.77 | 1.1KW | 56kg | 12100N |
| R77F-Y1.1KW | 57.68 | 1.1KW | 56kg | 12400N |
| R77F-Y1.1KW | 52.07 | 1.1KW | 56kg | 12500N |
| R77F-Y1.1KW | 45.81 | 1.1KW | 56kg | 12700N |
| R77F-Y1.1KW | 43.26 | 1.1KW | 56kg | 12700N |
| R77F-Y1.1KW | 36.83 | 1.1KW | 56kg | 12900N |
| R77F-Y1.1KW | 33.47 | 1.1KW | 56kg | 12900N |
R77F減速機配1.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R77F-Y1.5KW | 92.97 | 1.5KW | 59kg | 8750N |
| R77F-Y1.5KW | 81.80 | 1.5KW | 59kg | 9930N |
| R77F-Y1.5KW | 77.24 | 1.5KW | 59kg | 10300N |
| R77F-Y1.5KW | 65.77 | 1.5KW | 59kg | 11200N |
| R77F-Y1.5KW | 57.68 | 1.5KW | 59kg | 11700N |
| R77F-Y1.5KW | 52.07 | 1.5KW | 59kg | 12000N |
| R77F-Y1.5KW | 45.81 | 1.5KW | 59kg | 12300N |
| R77F-Y1.5KW | 43.26 | 1.5KW | 59kg | 12400N |
| R77F-Y1.5KW | 36.83 | 1.5KW | 59kg | 12600N |
| R77F-Y1.5KW | 33.47 | 1.5KW | 59kg | 12700N |
| R77F-Y1.5KW | 29.00 | 1.5KW | 59kg | 12500N |
| R77F-Y1.5KW | 25.23 | 1.5KW | 59kg | 12000N |
| R77F-Y1.5KW | 23.37 | 1.5KW | 59kg | 11700N |
| R77F-Y1.5KW | 21.43 | 1.5KW | 59kg | 11400N |
| R77F-Y1.5KW | 18.80 | 1.5KW | 59kg | 11000N |
R77F減速機配2.2KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R77F-Y2.2KW | 65.77 | 2.2KW | 68kg | 6520N |
| R77F-Y2.2KW | 57.68 | 2.2KW | 68kg | 9630N |
| R77F-Y2.2KW | 52.07 | 2.2KW | 68kg | 10400N |
| R77F-Y2.2KW | 45.81 | 2.2KW | 68kg | 11100N |
| R77F-Y2.2KW | 43.26 | 2.2KW | 68kg | 11300N |
| R77F-Y2.2KW | 36.83 | 2.2KW | 68kg | 11900N |
| R77F-Y2.2KW | 33.47 | 2.2KW | 68kg | 12100N |
| R77F-Y2.2KW | 29.00 | 2.2KW | 68kg | 12100N |
| R77F-Y2.2KW | 25.23 | 2.2KW | 68kg | 11600N |
| R77F-Y2.2KW | 23.37 | 2.2KW | 68kg | 11400N |
| R77F-Y2.2KW | 21.43 | 2.2KW | 68kg | 11100N |
| R77F-Y2.2KW | 18.80 | 2.2KW | 68kg | 10700N |
| R77F-Y2.2KW | 17.82 | 2.2KW | 68kg | 10600N |
| R77F-Y2.2KW | 15.60 | 2.2KW | 68kg | 10200N |
| R77F-Y2.2KW | 14.05 | 2.2KW | 68kg | 9880N |
R77F減速機配3KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R77F-Y3KW | 45.81 | 3KW | 71kg | 9090N |
| R77F-Y3KW | 43.26 | 3KW | 71kg | 9620N |
| R77F-Y3KW | 36.83 | 3KW | 71kg | 10700N |
| R77F-Y3KW | 33.47 | 3KW | 71kg | 11200N |
| R77F-Y3KW | 29.00 | 3KW | 71kg | 11600N |
| R77F-Y3KW | 25.23 | 3KW | 71kg | 11200N |
| R77F-Y3KW | 23.37 | 3KW | 71kg | 11000N |
| R77F-Y3KW | 21.43 | 3KW | 71kg | 10700N |
| R77F-Y3KW | 18.80 | 3KW | 71kg | 10400N |
| R77F-Y3KW | 17.82 | 3KW | 71kg | 10200N |
| R77F-Y3KW | 15.60 | 3KW | 71kg | 9880N |
| R77F-Y3KW | 14.05 | 3KW | 71kg | 9600N |
| R77F-Y3KW | 12.33 | 3KW | 71kg | 9250N |
| R77F-Y3KW | 10.88 | 3KW | 71kg | 8930N |
| R77F-Y3KW | 9.64 | 3KW | 71kg | 8630N |
| R77F-Y3KW | 8.59 | 3KW | 71kg | 8400N |
| R77F-Y3KW | 7.74 | 3KW | 71kg | 8150N |
| R77F-Y3KW | 6.79 | 3KW | 71kg | 7830N |
R77F減速機配4KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R77F-Y4KW | 36.83 | 4KW | 82kg | 7040N |
| R77F-Y4KW | 33.47 | 4KW | 82kg | 9370N |
| R77F-Y4KW | 29.00 | 4KW | 82kg | 10500N |
| R77F-Y4KW | 25.23 | 4KW | 82kg | 10700N |
| R77F-Y4KW | 23.37 | 4KW | 82kg | 10500N |
| R77F-Y4KW | 21.43 | 4KW | 82kg | 10300N |
| R77F-Y4KW | 18.80 | 4KW | 82kg | 10000N |
| R77F-Y4KW | 17.82 | 4KW | 82kg | 9880N |
| R77F-Y4KW | 15.60 | 4KW | 82kg | 9560N |
| R77F-Y4KW | 14.05 | 4KW | 82kg | 9320N |
| R77F-Y4KW | 12.33 | 4KW | 82kg | 9010N |
| R77F-Y4KW | 10.88 | 4KW | 82kg | 8710N |
| R77F-Y4KW | 9.64 | 4KW | 82kg | 8430N |
| R77F-Y4KW | 8.59 | 4KW | 82kg | 8250N |
| R77F-Y4KW | 7.74 | 4KW | 82kg | 8010N |
| R77F-Y4KW | 6.79 | 4KW | 82kg | 7710N |
| R77F-Y4KW | 5.99 | 4KW | 82kg | 7430N |
| R77F-Y4KW | 5.31 | 4KW | 82kg | 7160N |
R77F減速機配5.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R77F-Y5.5KW | 18.80 | 5.5KW | 96kg | 9300N |
| R77F-Y5.5KW | 17.82 | 5.5KW | 96kg | 9370N |
| R77F-Y5.5KW | 15.60 | 5.5KW | 96kg | 9120N |
| R77F-Y5.5KW | 14.05 | 5.5KW | 96kg | 8920N |
| R77F-Y5.5KW | 12.33 | 5.5KW | 96kg | 8650N |
| R77F-Y5.5KW | 10.88 | 5.5KW | 96kg | 8400N |
| R77F-Y5.5KW | 9.64 | 5.5KW | 96kg | 8160N |
| R77F-Y5.5KW | 8.59 | 5.5KW | 96kg | 8040N |
| R77F-Y5.5KW | 7.74 | 5.5KW | 96kg | 7820N |
| R77F-Y5.5KW | 6.79 | 5.5KW | 96kg | 7540N |
| R77F-Y5.5KW | 5.99 | 5.5KW | 96kg | 7280N |
| R77F-Y5.5KW | 5.31 | 5.5KW | 96kg | 7040N |
R77F減速機配7.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R77F-Y7.5KW | 18.80 | 7.5KW | 109kg | 5530N |
| R77F-Y7.5KW | 17.82 | 7.5KW | 109kg | 5920N |
| R77F-Y7.5KW | 15.60 | 7.5KW | 109kg | 6770N |
| R77F-Y7.5KW | 14.05 | 7.5KW | 109kg | 7310N |
| R77F-Y7.5KW | 12.33 | 7.5KW | 109kg | 7850N |
| R77F-Y7.5KW | 10.88 | 7.5KW | 109kg | 7960N |
| R77F-Y7.5KW | 9.64 | 7.5KW | 109kg | 7770N |
| R77F-Y7.5KW | 8.59 | 7.5KW | 109kg | 7690N |
| R77F-Y7.5KW | 7.74 | 7.5KW | 109kg | 7540N |
| R77F-Y7.5KW | 6.79 | 7.5KW | 109kg | 7290N |
| R77F-Y7.5KW | 5.99 | 7.5KW | 109kg | 7060N |
| R77F-Y7.5KW | 5.31 | 7.5KW | 109kg | 6840N |
R77F減速機配11KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R77F-Y11KW | 10.88 | 11KW | 151kg | 4410N |
| R77F-Y11KW | 9.64 | 11KW | 151kg | 5130N |
| R77F-Y11KW | 7.74 | 11KW | 151kg | 4750N |
| R77F-Y11KW | 6.79 | 11KW | 151kg | 5350N |
| R77F-Y11KW | 5.99 | 11KW | 151kg | 5800N |
| R77F-Y11KW | 5.31 | 11KW | 151kg | 6150N |
R78減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：R68減速機
關鍵詞:同向減速機臥式配電機一體式_R系列減速電機_R系列減速機_R系列減速器_同向減速器_GR型減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機
R系列減速機型號：R18減速機,R28減速機,R38減速機,R48減速機,R58減速機,R68減速機,R78減速機,R88減速機,R98減速機,R108減速機,R138減速機,R148減速機,R168減速機
R系列齒輪減速馬達可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: R78減速機 R77臥式硬齒面斜齒輪減速機 R77系列減速機 R77減速機傳動比 R77減速機選型參數 R77減速機CAD三維圖
跟此產品相關的文檔 / Related DownLoad
| 產品文件名稱 | 點擊下載 |
| R78減速機CAD三維圖紙下載 |
|
| R78減速機選型參數下載 |
|
